HDC807 Gold Stereo SE Power Amplifier
Identico al modello HDC807 nelle specifiche tecniche e nelle prestazioni soniche, con font di incisione differente e pannello frontale in alluminio satinato oro invece che sabbiato naturale.
Può essere impiegato, anche, come finale a bassissima distorsione per cuffia, estremamente silenzioso e dalla timbrica molto raffinata.
HDC807 Gold Stereo SE Power Amplifier

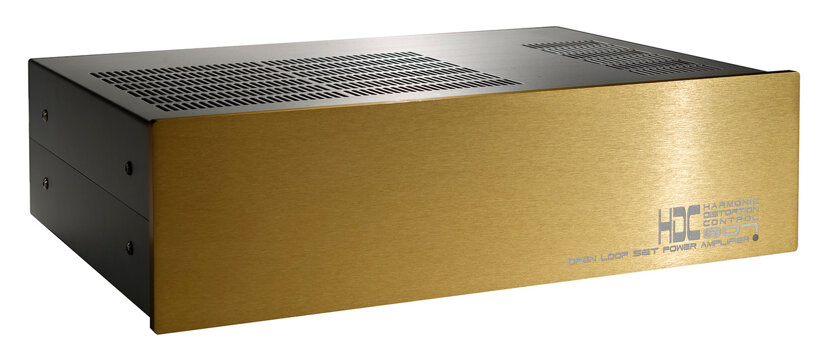

Identical to the HDC807 model in technical specifications and sonic performance, but with a different engraving font and a satin gold aluminum front panel instead of the natural sandblasted finish. It can also be used as an extremely low-distortion headphone amplifier, offering a very quiet operation and a highly refined timbre.
Specifics
Output power 5 W stereo or 5 + 5 W biamp. or 10 W mono
Tap 4 – 8 – 16 Ohm(mono mode: 2,4,8,12,16,20,24,32 Ohm)
Damping factor 3.5 @ 1 kHz
Frequency response 12 Hz –42 kHz (+0/-3 dB), @ 1 W
Input impedance 100 kOhm
Input sensitivity 300 mV
Total feedback 0 db
Distortion Second Harmonic: 3.1 %, @ 2 W, 1 kHz
Third Harmonic : 0.2 %, @ 2 W, 1 kHz

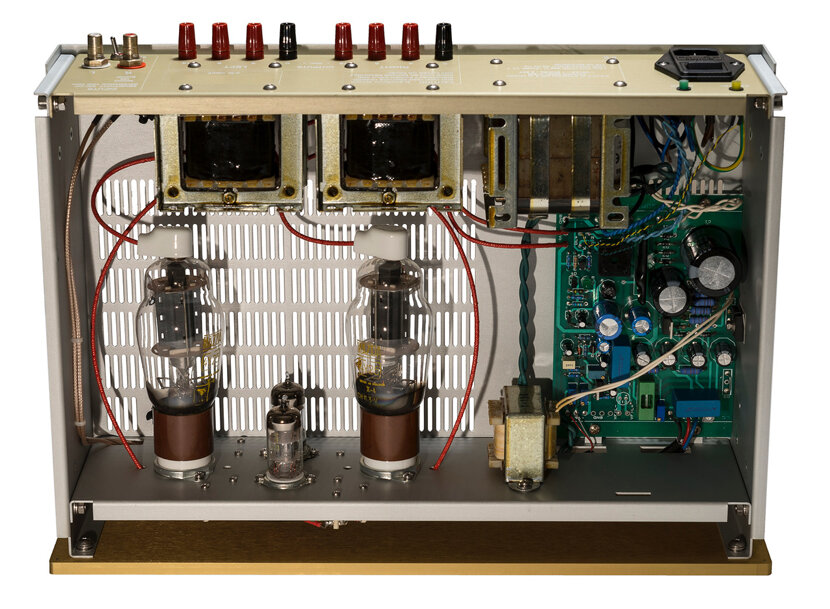

Tubes 2 x 5814A NOS, 2x807 NOS (triode connected)
General
Line voltage 230 V, fuse 1 A T
Power consumption 110 VA maximum
Warm-up time 15 minutes
Stand-by time 35 seconds
Dimensions H 121 mm, W 408 mm, L 283 mm
Weight 7.7 kg
